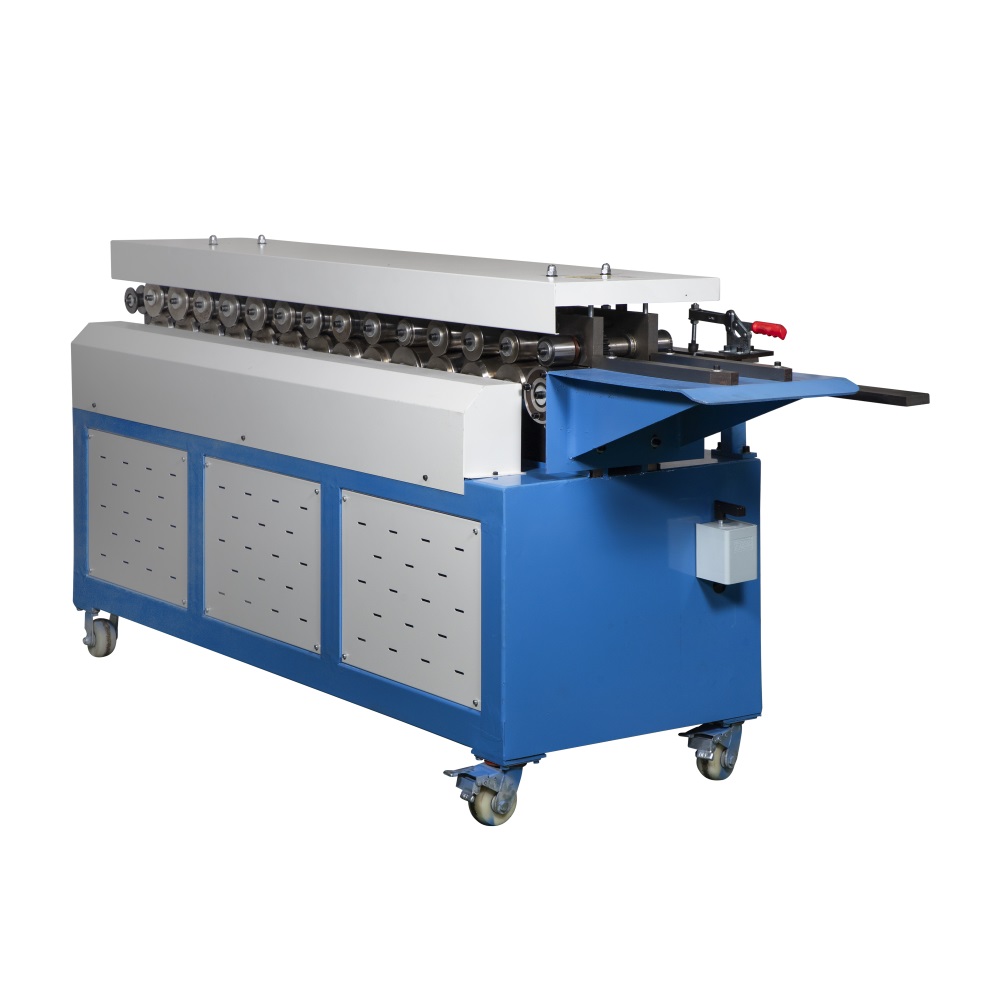

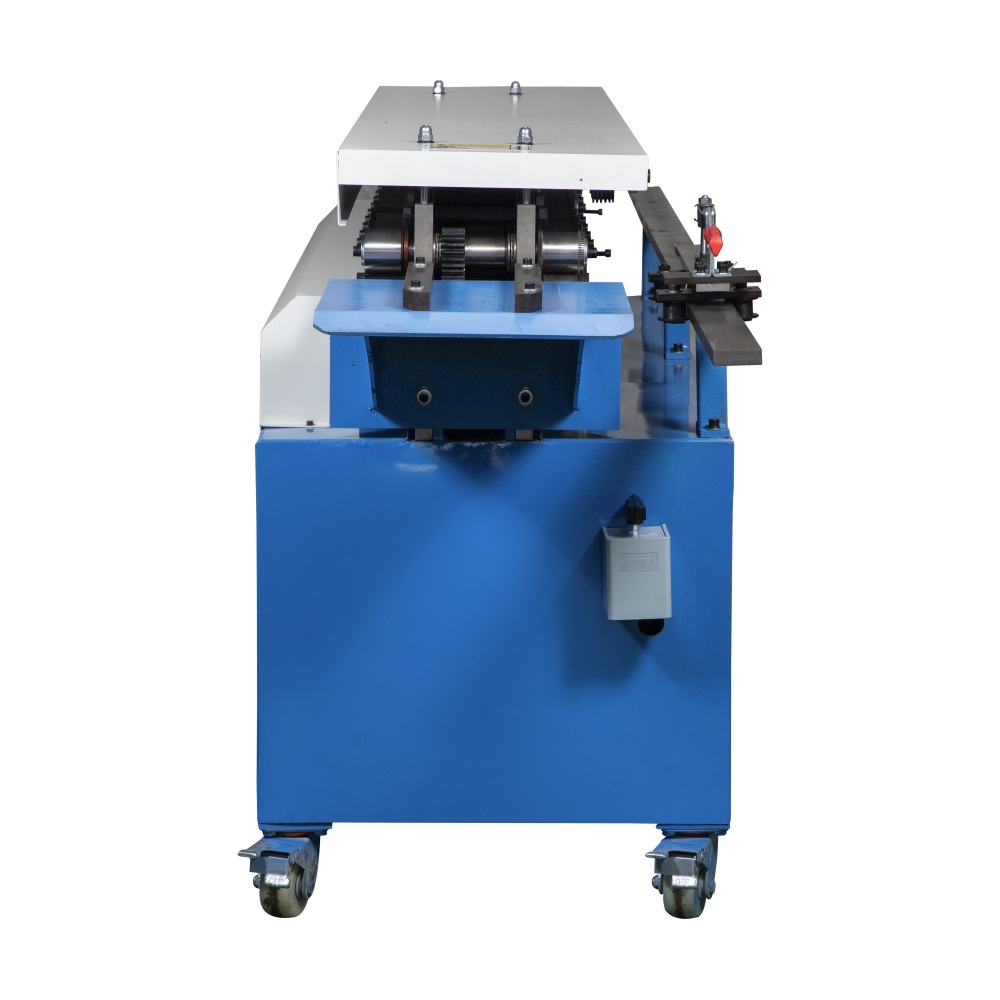

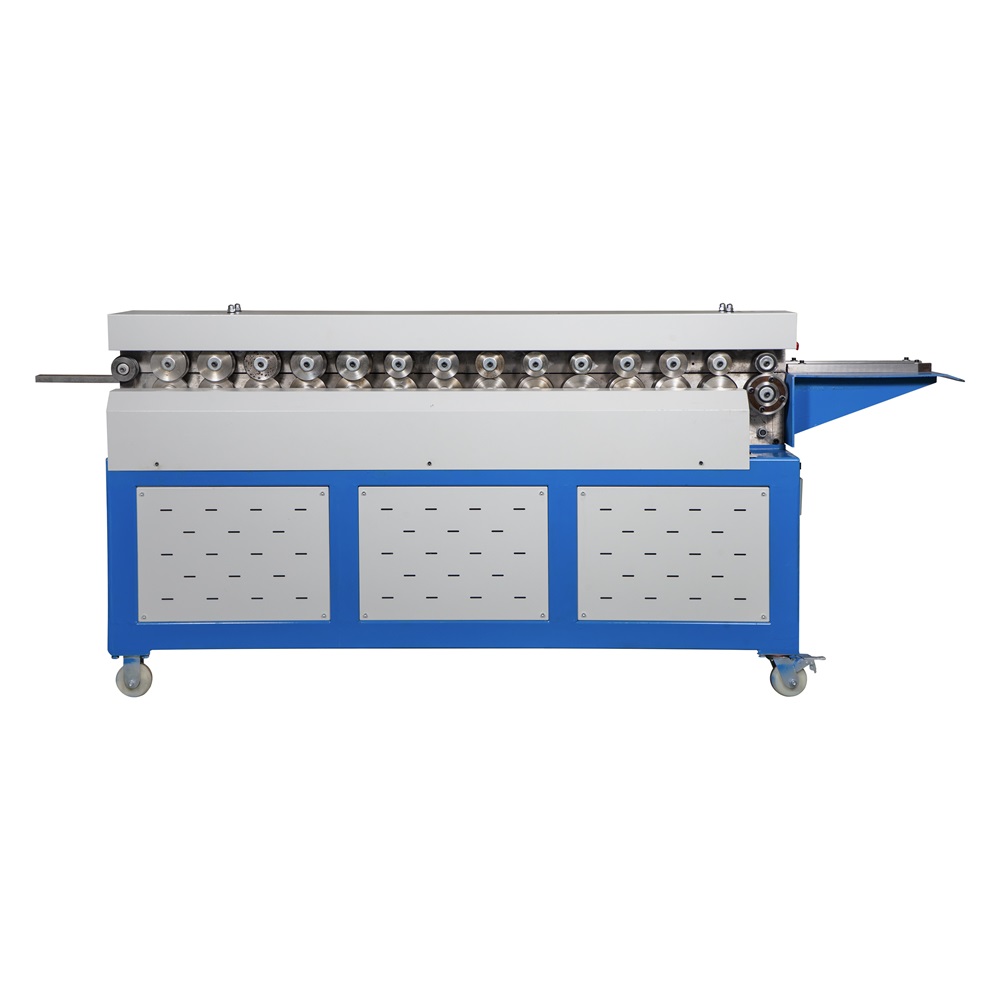

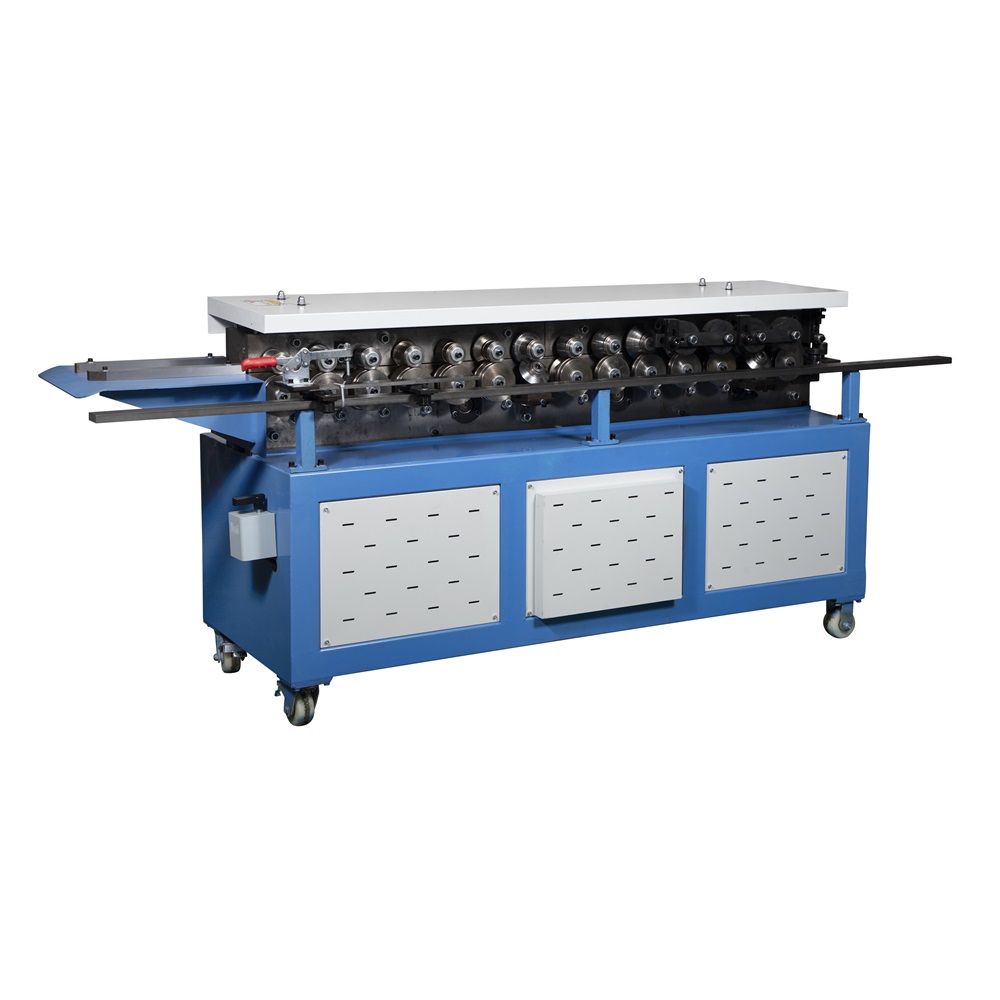

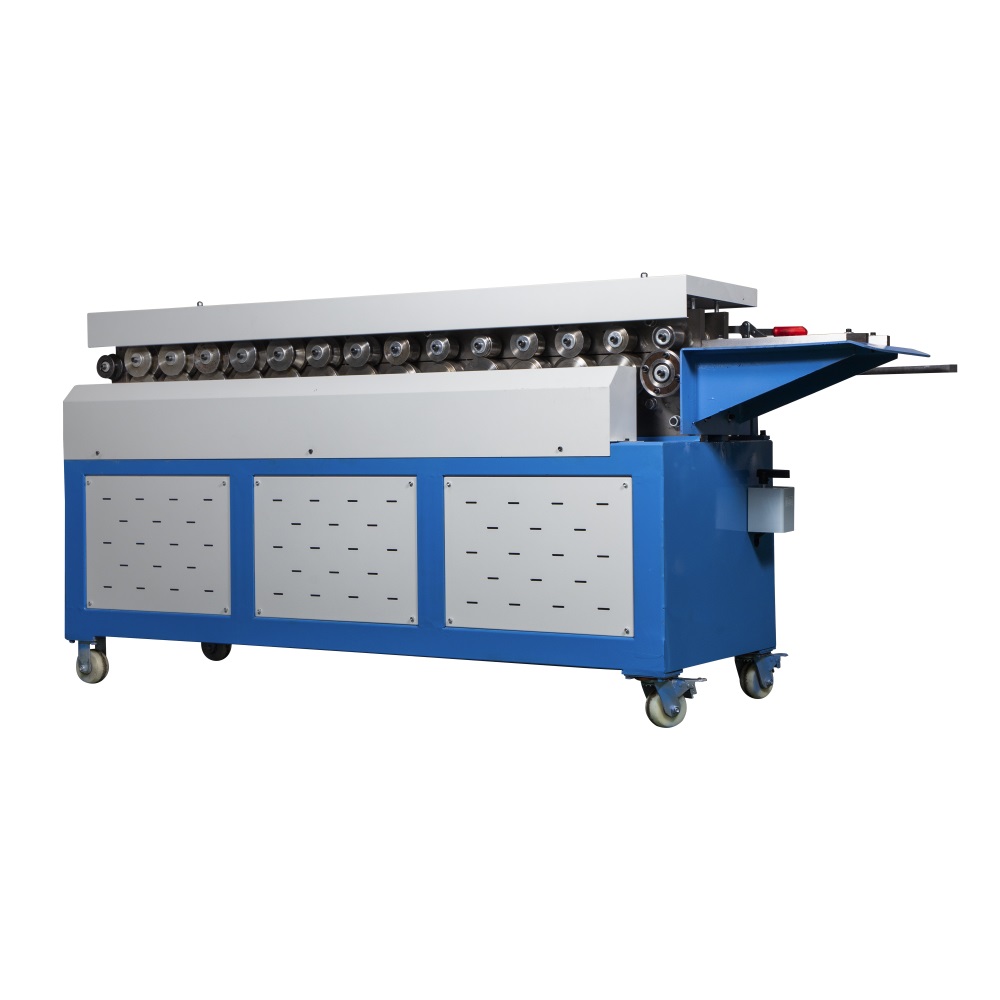

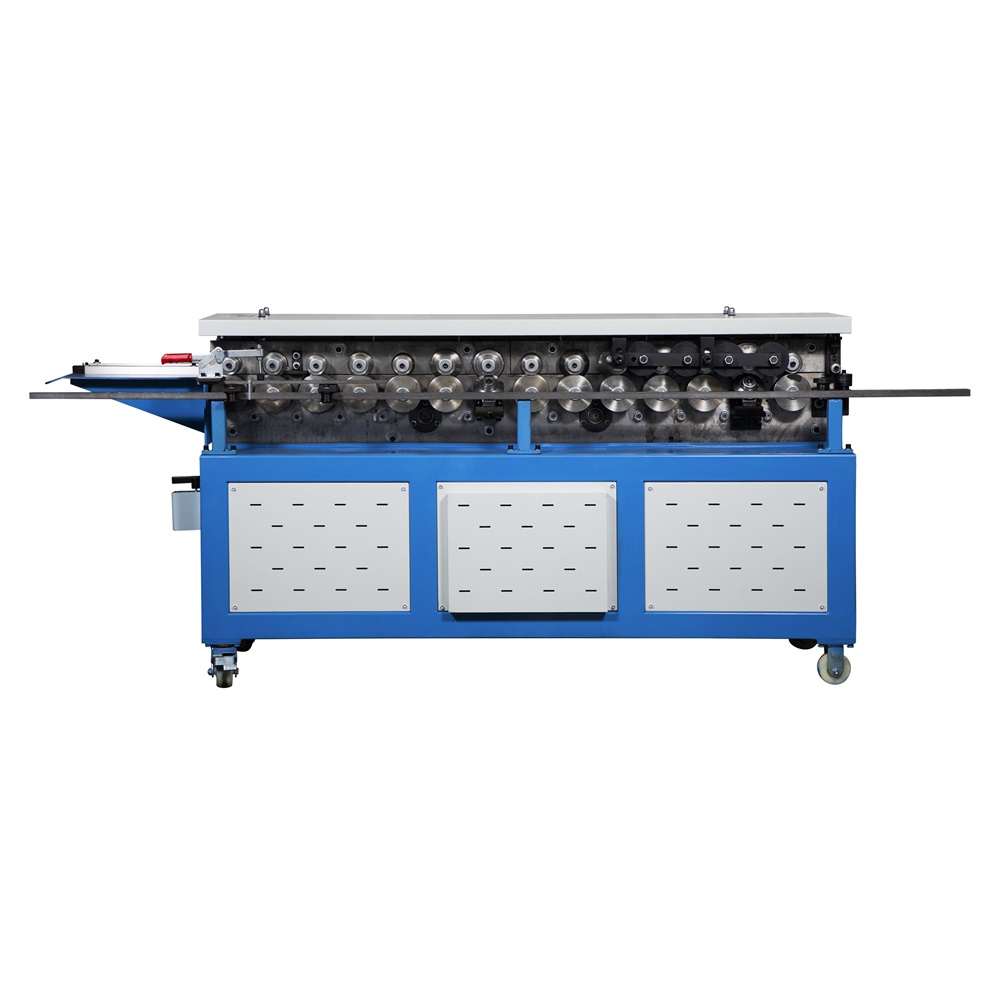

T-15 TDF Flange Forming Machine

HVAC Air Duct TDF Flange Forming Machine video presentation

product display

product presentation

TDF flange machine can be divided into three types according to the working requirements: single type T-12 and T-15,duplex type 2-T-12.Single type machine like T-12 and T-15 can form flange edge at one side and crispening edge at the other side; duplex type like 2-T-12 can form flange edge at both sides simultaneously to im- prove efficiency and save time.Additionally,duplex type can add flange edge or crispening edge out- side at either side.Our company would specially introduce high-strength roling reels made of GCr15,a kind of steel which prolongs the machine life by more than 5 times and outputs stainless steel TDF flange.

I. TDF Flange Forming Machine's Features:

TDF flange forming machine has two sides, one side is to make flange shape, another side is to make clip shape. Besides, we also can customize both sides to make flange shape. Flange height usually is 35±0.5mm, but 20,25,30mm also can be customized. This TDF flange forming machine is very easy operated on site and in factory.

TDF flange forming machine T-15 can make max 1.5mm thickness galvanized sheet and max 0.8mm stainless steel.

1. The rectangle duct flange can be fast processed.

2. Low making cost and high installing efficiency, convenient for standard & batches of production.

3. Suitable for making rectangle wind pipe with big section.

4. High quality, easy and convenient operation

II. Technical Parameters

1. Machine name: TDF flange forming machine

2. Machine model: T-15

3. Thickness range: 0.8-1.5mm

4. Power: 4.5KW

5. Weight: 1140KGS

6. Dimension:  2800*850*1340mm

Ⅲ.Quality Certifications:

V. RFQ:

1. Are you manufacturer or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?

We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.

 3.How about your machine quality?

HCY company is a mature brand in CHINA,through our 15 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.

4. What are your payment terms?

We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.

5.Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6.Do you accept customer Logo and customized ?

we accept kinds of customized ,including logo and machine .
